4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection

SKU: PB404B

Manufacturer: DuraChoice

2 Reviews

4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection

Manufacturer: DuraChoice

  • PB404B-015 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-15PSI
  • PB404B-030 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-30PSI
  • PB404B-060 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-60PSI
  • PB404B-100 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-100PSI
  • PB404B-160 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-160PSI
  • PB404B-200 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-200PSI
  • PB404B-300 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-300PSI
  • PB404B-400 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-400PSI
  • PB404B-500 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-500PSI
  • PB404B-600 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-600PSI
  • PB404B-K01 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-1,000PSI
  • PB404B-K015 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-1500PSI
  • PB404B-K02 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0- 2,000PSI
  • PB404B-K03 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-3,000PSI
  • PB404B-K04 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-4,000PSI
  • PB404B-K05 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-5,000PSI
  • PB404B-K06 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-6,000PSI
  • PB404B-K10 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-1,0000PSI
  • PB404B-K15 4" Oil Filled Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, 0-15,000PSI
  • PB404B-V00 4" Oil Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, -30HG/0PSI
  • PB404B-V15 4" Oil Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, -30HG/15PSI
  • PB404B-V30 4" Oil Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, -30HG/30PSI
  • PB404B-V160 4" Oil Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection -30HG/160PSI
  • PB404B-V60 4" Oil Filled Vacuum Pressure Gauge - Stainless Steel Case, Brass, 1/4" NPT, Center Back Mount Connection, -30HG/60PSI
Items:0  |  Total:$0.00

DESCRIPTION

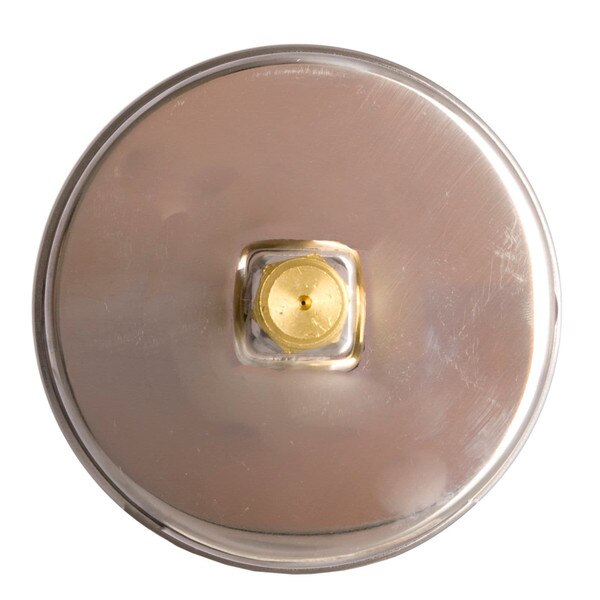

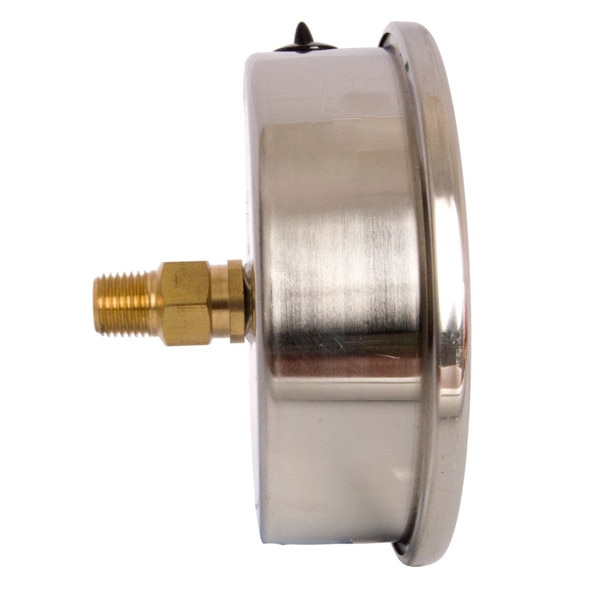

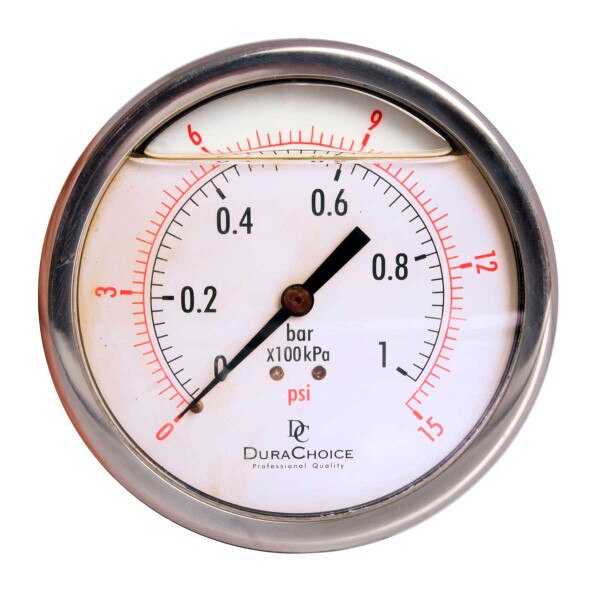

This 4" center back mount liquid filled gauge is great for large projects. The dial is legible from a distance and the stainless steel case is made for duty in harsh environments. The gauge has a 1/4" NPT brass connection as well as a brass bourdon tube and movement.

Liquid-filled pressure gauges resist vibration and pulsation better than dry gauges. Gauges are available in ranges from Vacuum to 0-15,000 PSI and can measure a variety of media, including water, oil, gas (WOG) or diesel. Â

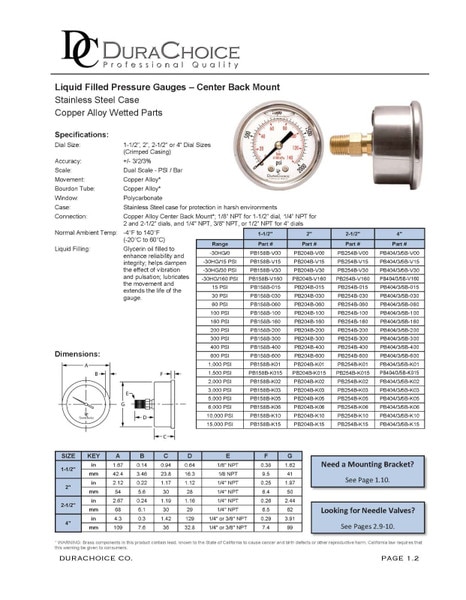

Features

Dial Size: 1-1/2", 2", 2-1/2" or 4" Dial Sizes (Crimped Casing)

Accuracy: +/- 3/2/3%

Scale: Dual Scale - PSI/BarÂ

Movement: Copper Alloy*

Bourdon Tube: Copper Alloy*

(more...)

California Prop 65 Warning: Brass components in this product contain lead, known to the state of California to cause cancer and birth defects or other reproductive harm. California law requires that this warning be given to consumers
